The balance between safety and security versus high-performance and high-throughput has always been a challenge in OS design. Although not mutually exclusive, making something safer usually lowers performance, which could be due to software design or hardware limitations.

To combat this, modern hardware features things like MMUs, privilege levels and virtualization. But they alone are not enough. The software should also be designed and implemented smartly to make use of the hardware the right way. This, in turn, put great responsibility on kernels, the software that abstracts the hardware.

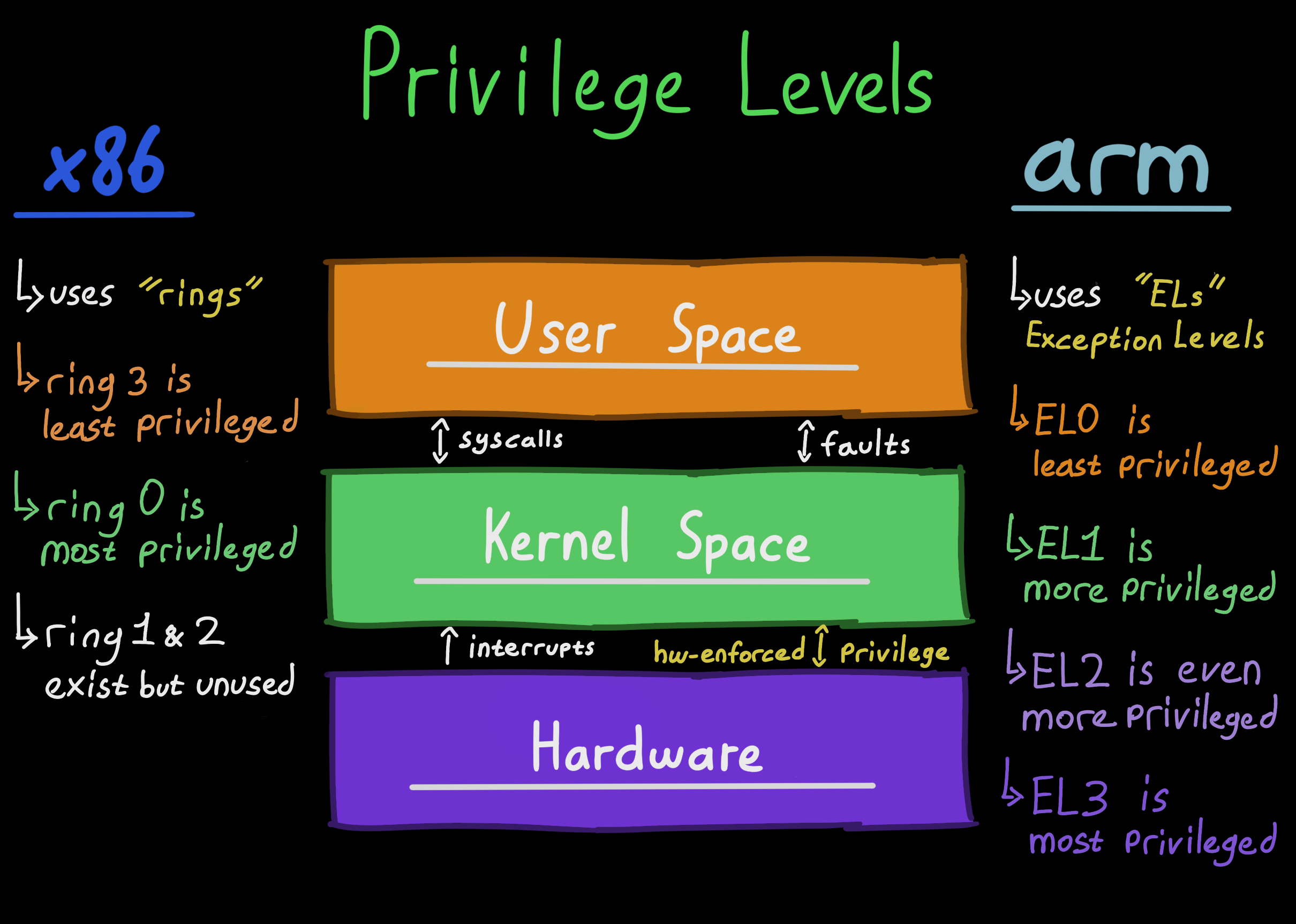

Privilege Levels

One of the most popular kernel designs out there is monolithic kernels, where high-performance software (e.g., drivers) resides in the kernel space. However, this brings many safety and security risks. If the software inside the kernel space fails, the entire system goes with it. One solution would be to move as much software away from the kernel as possible.

Microkernels, minimizes the software in the kernel space by only including the essentials like the scheduler, IPC and interrupt handling. This enhances system safety as there is less software that could fail. It also makes verification and validation easier as the code size is smaller. However, performance and system latency might suffer greatly if the microkernel is not designed carefully.

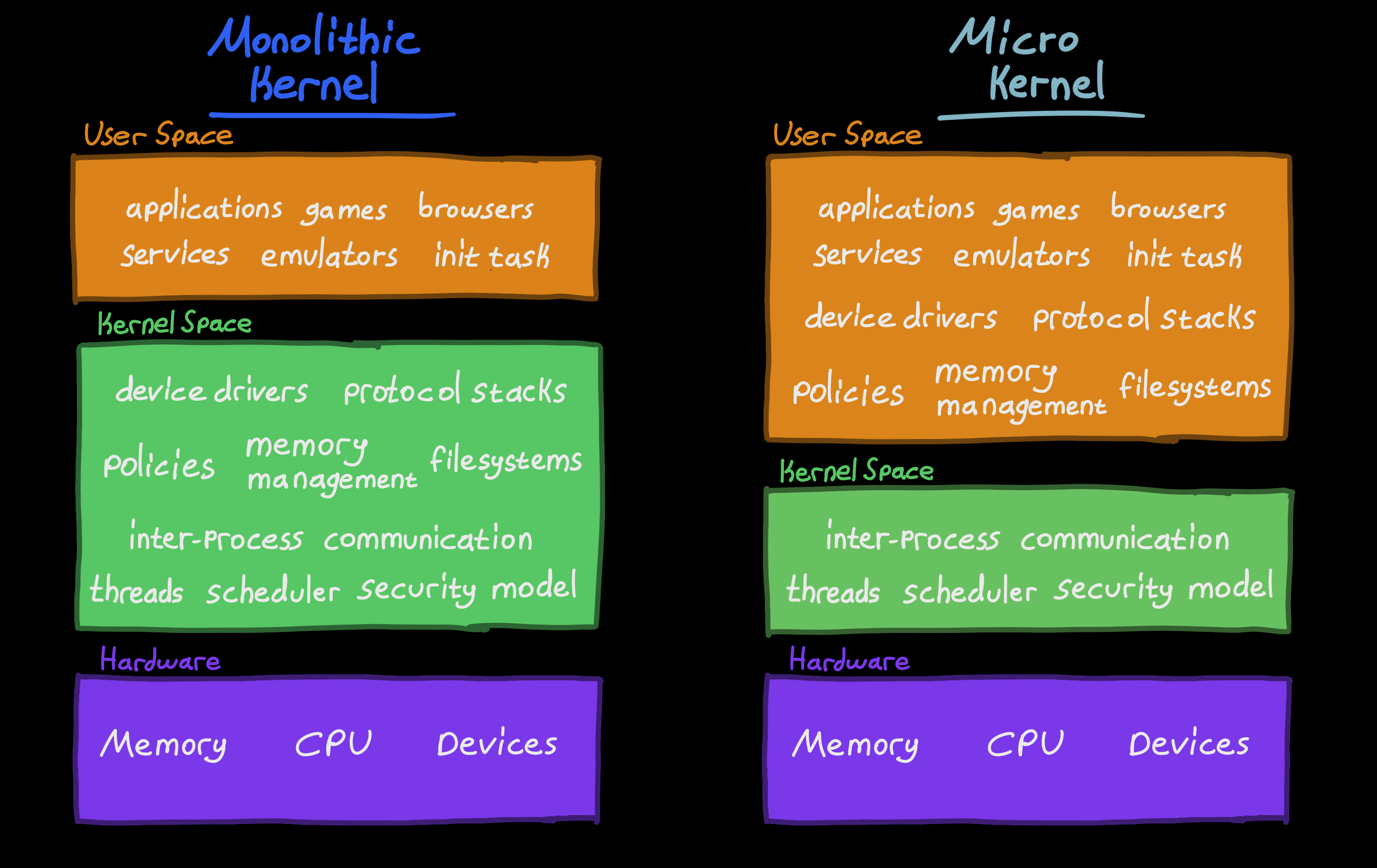

Comparing Kernel Designs: Monolithic and Micro

seL4 is a fast, secure and formally verified microkernel with fine-grained access control and support for virtual machines. It is the world’s fastest microkernel, balancing both security and performance. How this balance is achieved is a feat of software design and engineering.

In this series I will be going over the mechanisms that allow safe, secure and high-performant systems to be built with seL4. I highly suggest everyone to check the official white paper for a deeper understanding on the project’s background, formal verification, objectives and real-world applications.

Abstractions

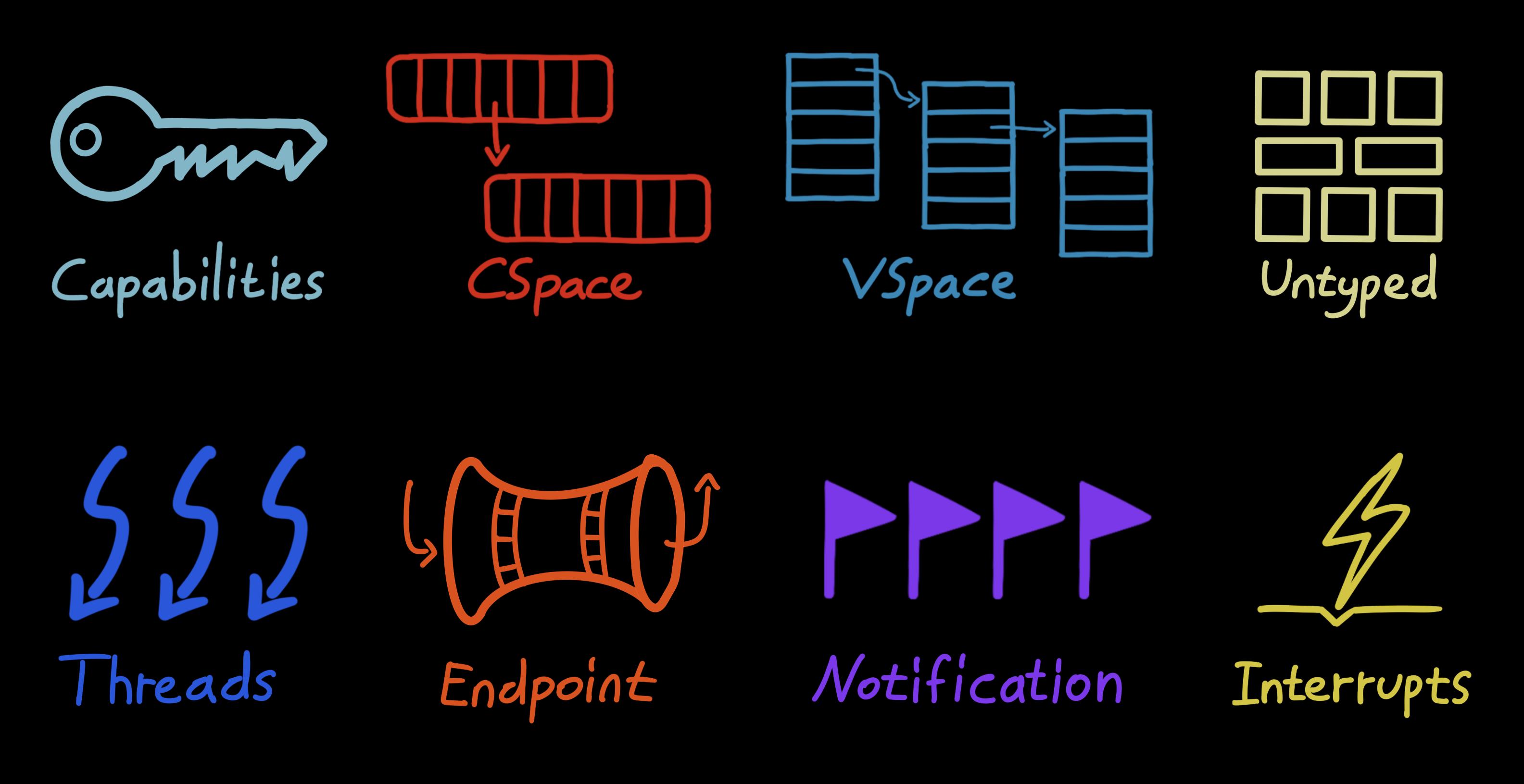

seL4 Abstractions (a.k.a Services)

seL4 acts as a hardware abstraction layer for the software running in the user space. These abstractions are backed by well-designed, secure, yet simple mechanisms. You might already be familiar with some of them from other systems.

• Capabilities
• Threads
• Address Spaces
• Untyped
• Inter-process Communication
• Interrupts

Each abstraction and its mechanism is quite impressive and deserves its own writing. So they will be explored in the next parts of this series.

System Calls

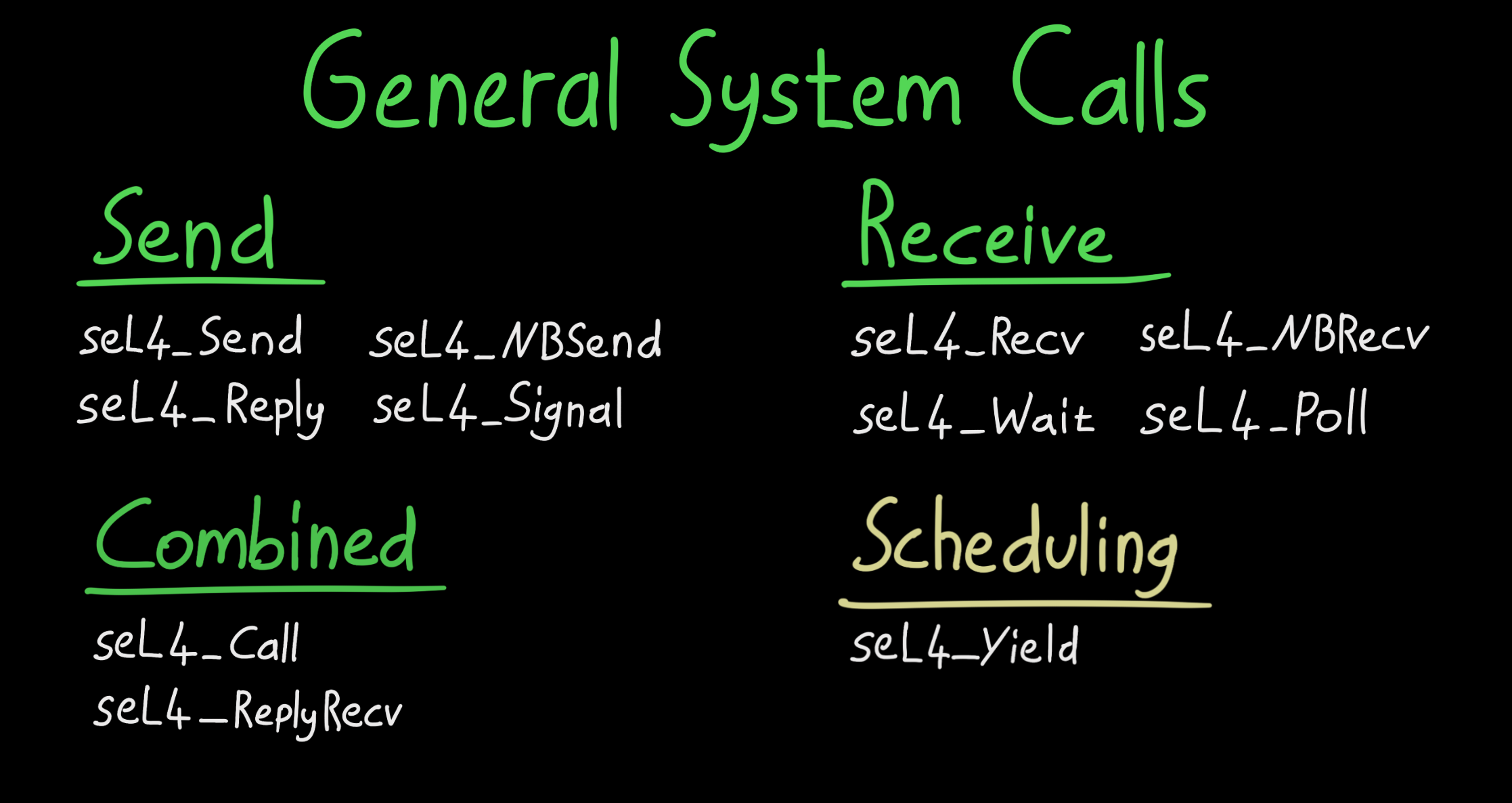

seL4 General System Calls

Traditional monolithic kernels provide abstractions (services) through system calls. For instance, to create a folder in Linux, you invoke the mkdir system call with its unique syscall number 83.

In that traditional sense, seL4 only has 11 system calls that you can invoke with a syscall number. Logically, though, there are only 3.

• seL4_Send
• seL4_Recv
• seL4_Yield

The rest of the system calls are variations of the three above (e.g., seL4_ReplyRecv = seL4_Send + seL4_Recv). However, for optimization reasons, the variations are also implemented as system calls with their unique syscall numbers.

The seL4_Yield system call here is a unique one because it doesn’t invoke an object (explained later) and isn’t a variation of seL4_Send or seL4_Recv. See this mailing list for more info on it.

Kernel Objects

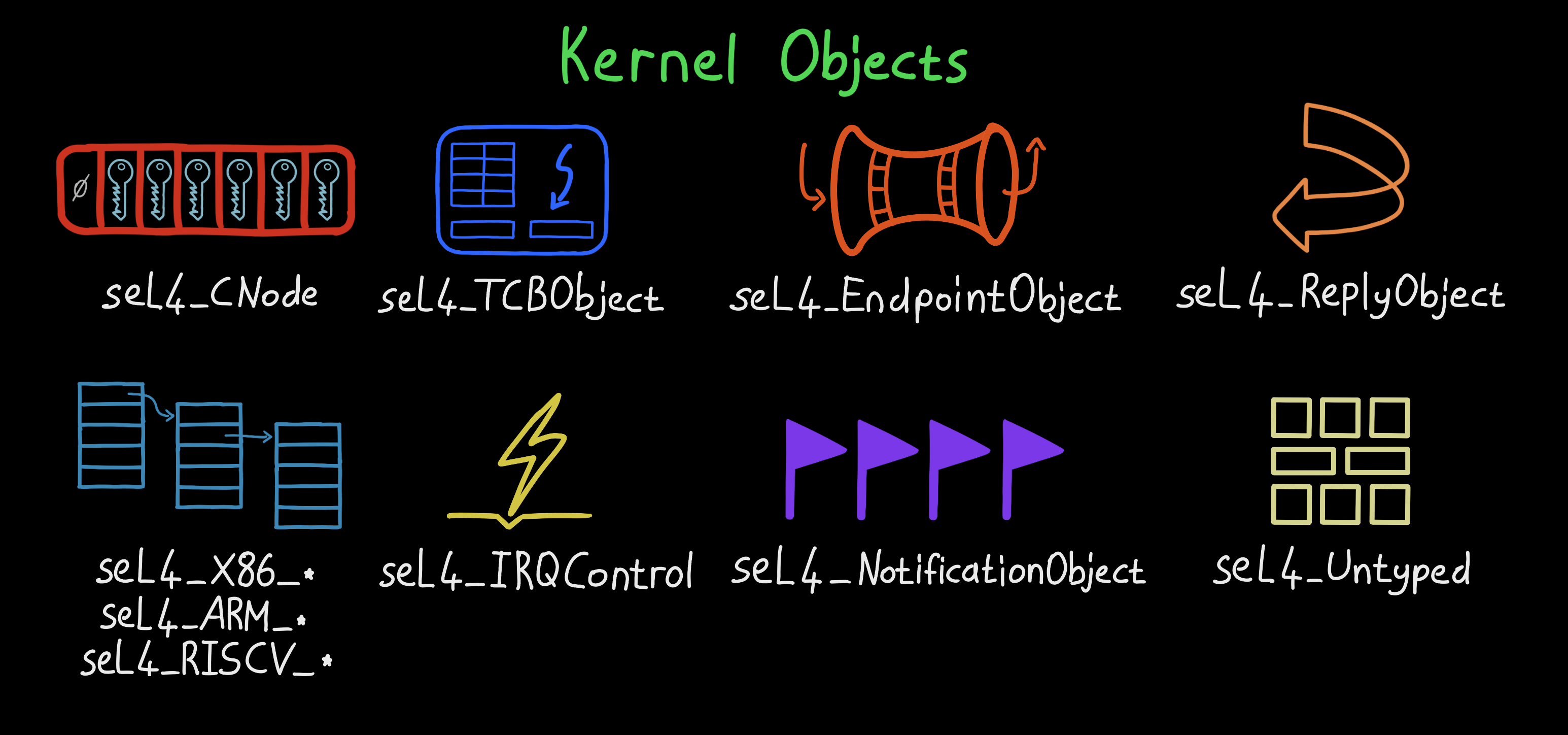

seL4 Kernel Objects

Unlike mainstream kernels, the interface to seL4’s abstractions (services) are not through system calls, but by invocations to kernel objects. This is a crucial design & implementation difference.

The seL4’s interface to these objects (via system calls seL4_Send and seL4_Recv) forms the kernel’s interface itself. Kernel abstractions (services) are created, manipulated, and interfaced using the following kernel objects:

• CNodes
• Thread Control Blocks
• Endpoints
• Reply Objects
• Notification Objects
• Virtual Address Space Objects
• Interrupt Objects
• Untyped Memory
• Architecture-Specific Objects

To protect the kernel objects, seL4 uses capabilities and the system’s MMU. The kernel marks each object’s memory region as ‘protected’ on the MMU for hardware protection & isolation, while capabilities are used for access control inside seL4.

Capabilities and the types of kernel objects they reference will be explored in the upcoming writings.

Object Methods

seL4 Object Methods (a.k.a. Invocations)

Kernel abstractions (services) are provided via invocations to kernel objects. This mechanism (or interface) is simply called object methods.

The object methods, handled by seL4, define what you can do with a certain type of kernel object. Each object method is accompanied by capabilities. They are used for object referencing and secure access control. The access rights associated with a capability determine the object methods that can be invoked. Again, this will be explored later.

Below are some example object methods. Refer to the offical seL4 API documentation to see them all.

• CNode
  • seL4_CNode_Copy
  • seL4_CNode_Delete
• Thread Control Block
  • seL4_TCB_ReadRegisters
  • seL4_TCB_WriteRegisters
  • seL4_TCB_Resume
• Untyped
  • seL4_Untyped_Retype

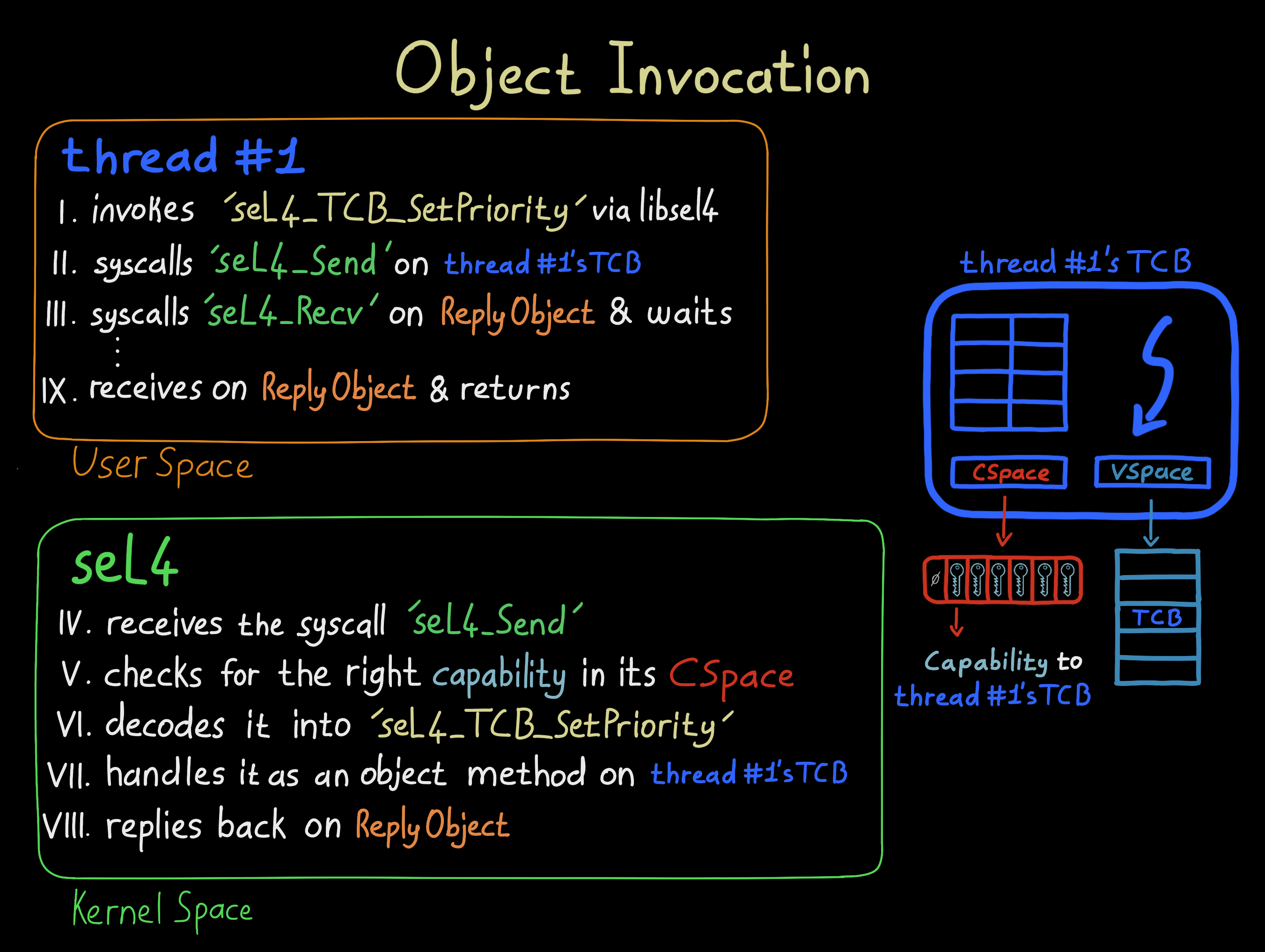

Each object method is actually either seL4_Send or seL4_Recv on a kernel object. For example, when you call the seL4_TCB_Set_Priority object method on a object method on a Thread Control Block object, you’re actually calling seL4_Send and seL4_Recv with a specific message (MsgInfo_t). In normal use, however, libsel4 abstracts this detail from you.

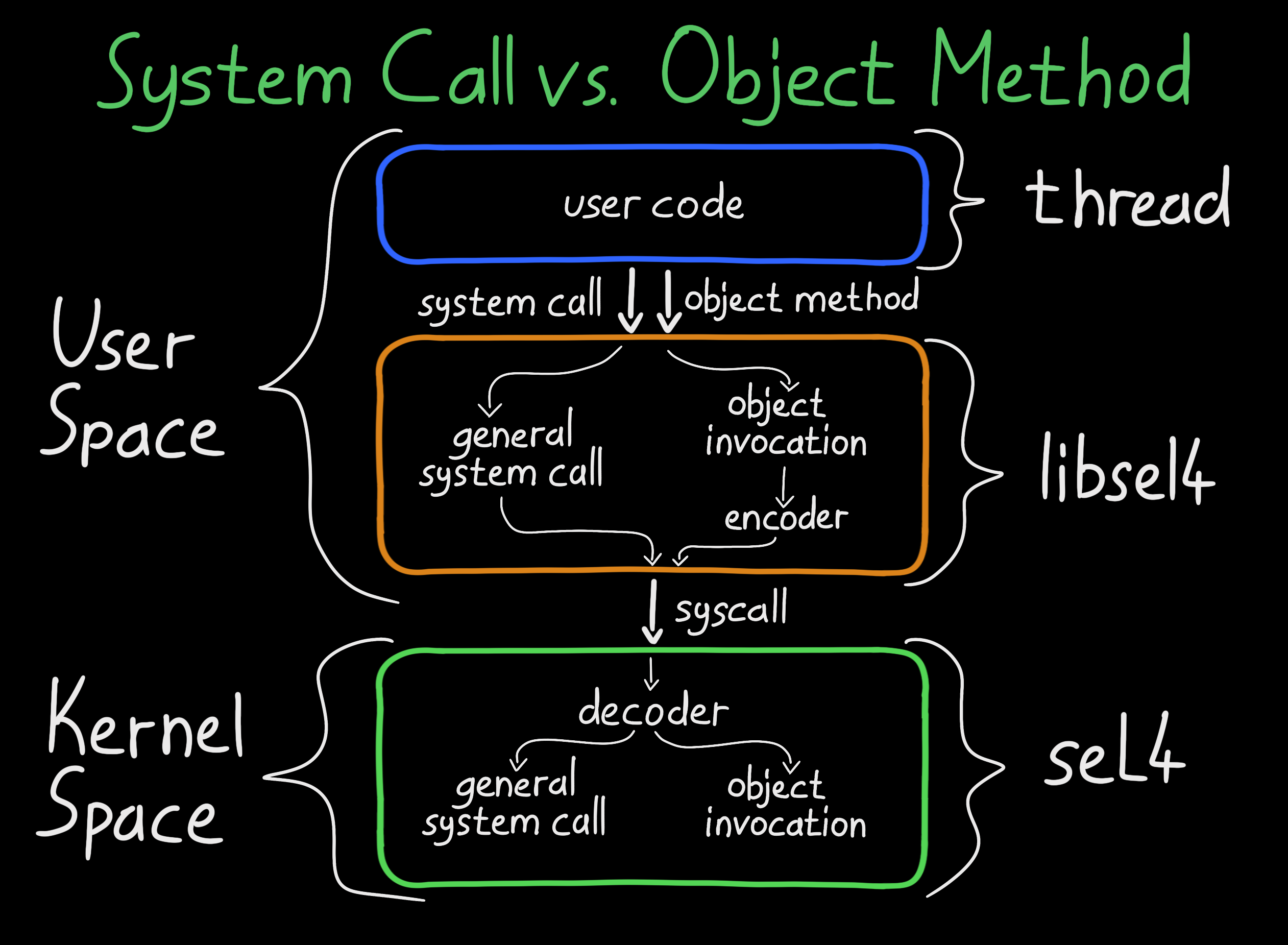

Relationship Between System Calls And Object Methods

In seL4, object methods are implemented differently from system calls. They don’t have unique syscall numbers. Instead, there’s a decoder that uses its own numbering system similar to syscalls to determine which object method to invoke on which kernel object. Take a look at object-api.xml to see all of the object methods. Try to compare them to syscall.xml.

Kernel Memory Allocation

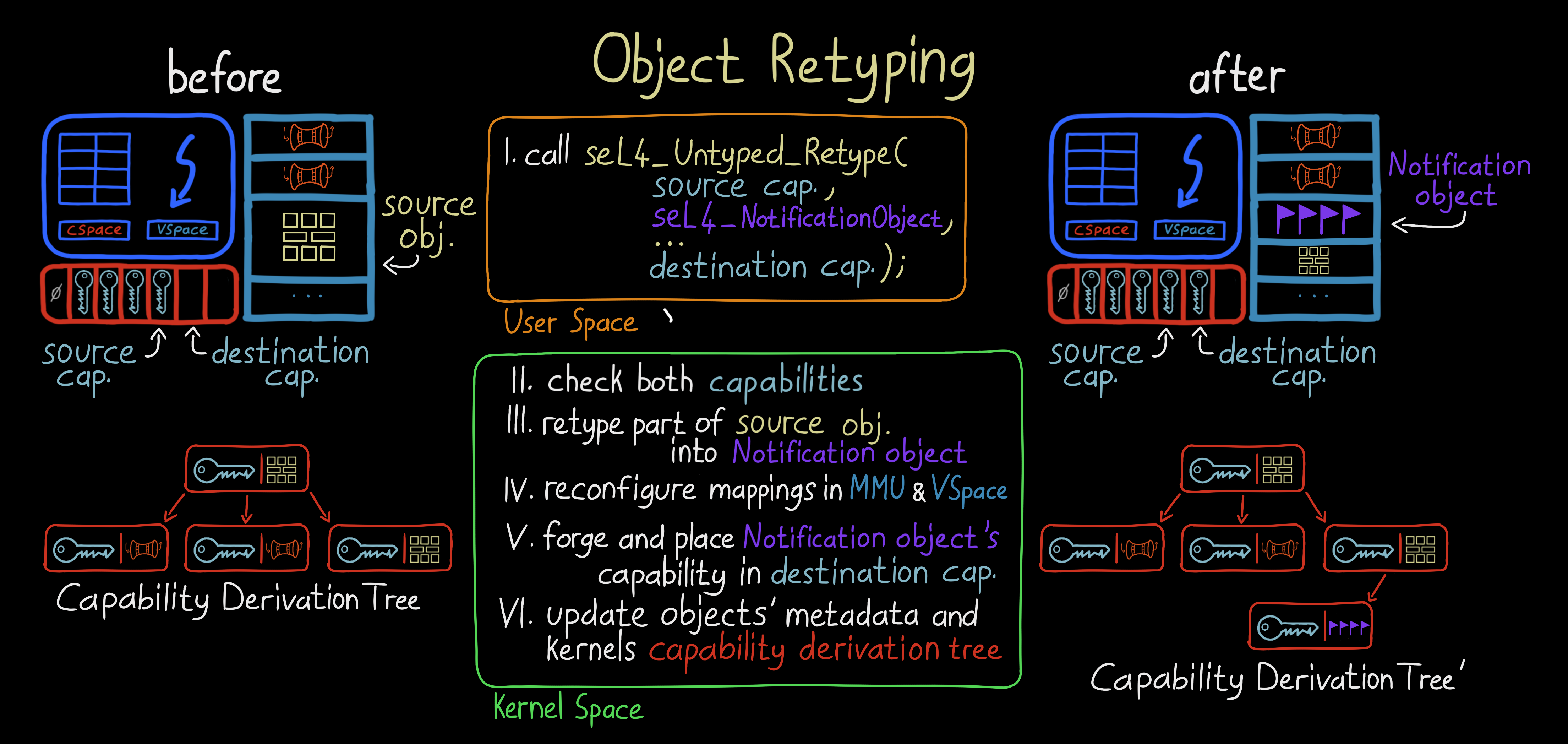

seL4 Object Retyping And Capability Derivation Tree (CDT)

Unlike other mainstream kernels, seL4 does not use any dynamic memory allocation. Everything it needs is pre-allocated during boot (e.g., data, code, stack) and remains fixed. This helps with predictability and in turn stability of the kernel. It also eases the formal verification.

However, the kernel must track the abstractions (services) it provides via the kernel objects. seL4 cleverly implements this functionality inside the Capability Derivation Tree (CDT) thats structured using the kernel object themselves!

When the user space creates a kernel object via seL4_Untyped_Retype, seL4 adds additional information to the new kernel object and updates the CDT. The required book-tracking information of kernel objects are now stored within the kernel objects! And with it seL4 avoids dynamic memory allocation.

Init Task

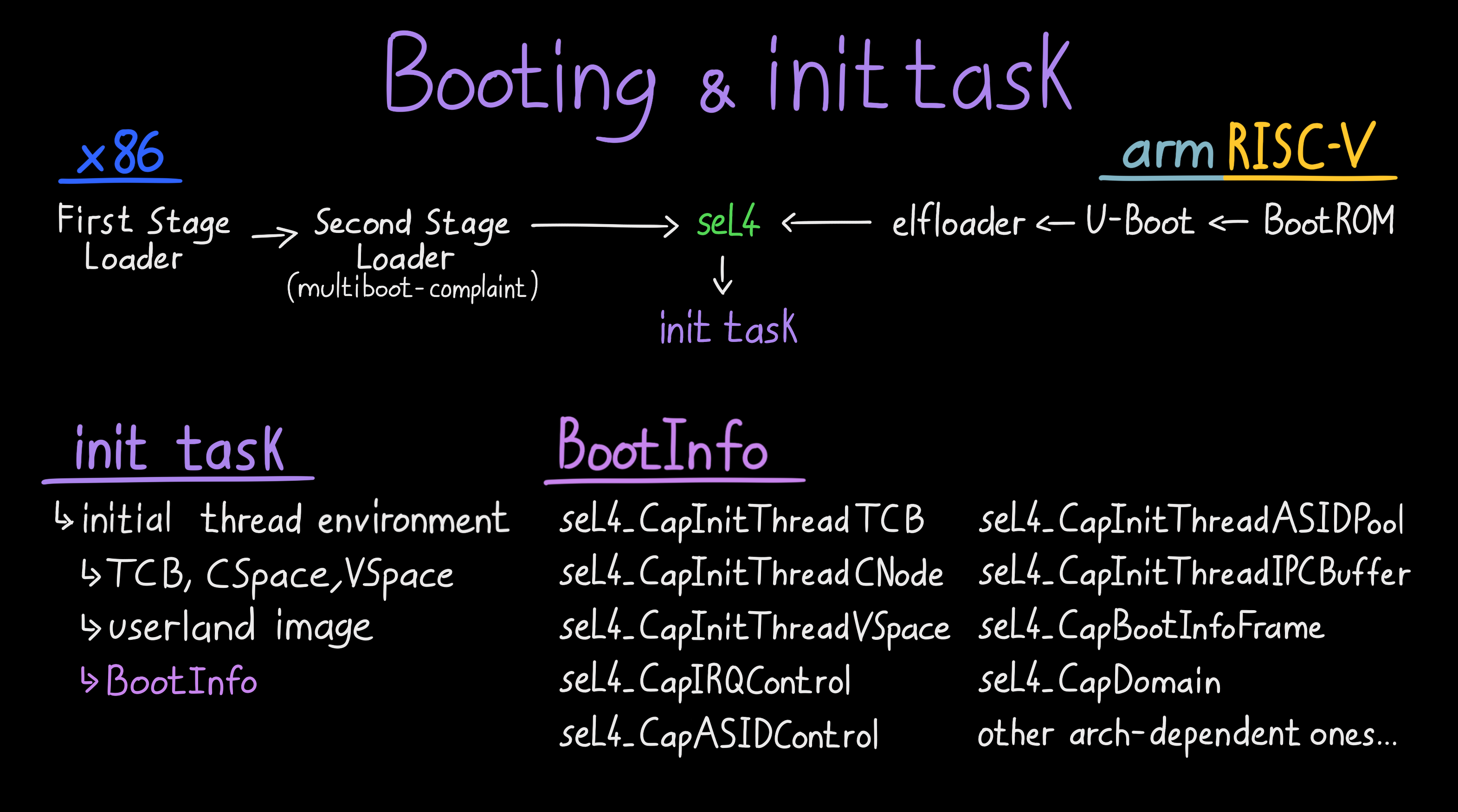

seL4 Simplified Booting, Initial Task And The BootInfo Structure

seL4 follows a “no-policy” design approach by providing only the mechanisms for enforcing security and access control, but it doesn’t impose specific policies on their use. The responsibility, however, must be given to someone and that is the init task (a.k.a. root task).

After the seL4 kernel boots, an initial thread is created and all system resources (e.g., untyped memory, interrupt control, user image) are given to it in a well-defined way via the BootInfo structure. It is then the responsibility of this task to set up the normal world such as drivers, filesystems and system services using the given resources.

To give a niche detail, since seL4 lacks any storage drivers or filesystems, loading the init task from a disk is impossible. To resolve this, both the seL4 kernel and the init task are either loaded by another bootloder called elfloader in ARM & RISCV or by a multibiot-complient Second Stage Loader in x86.

After starting the init task, seL4 begins operating. What happens next is totally up to you!
